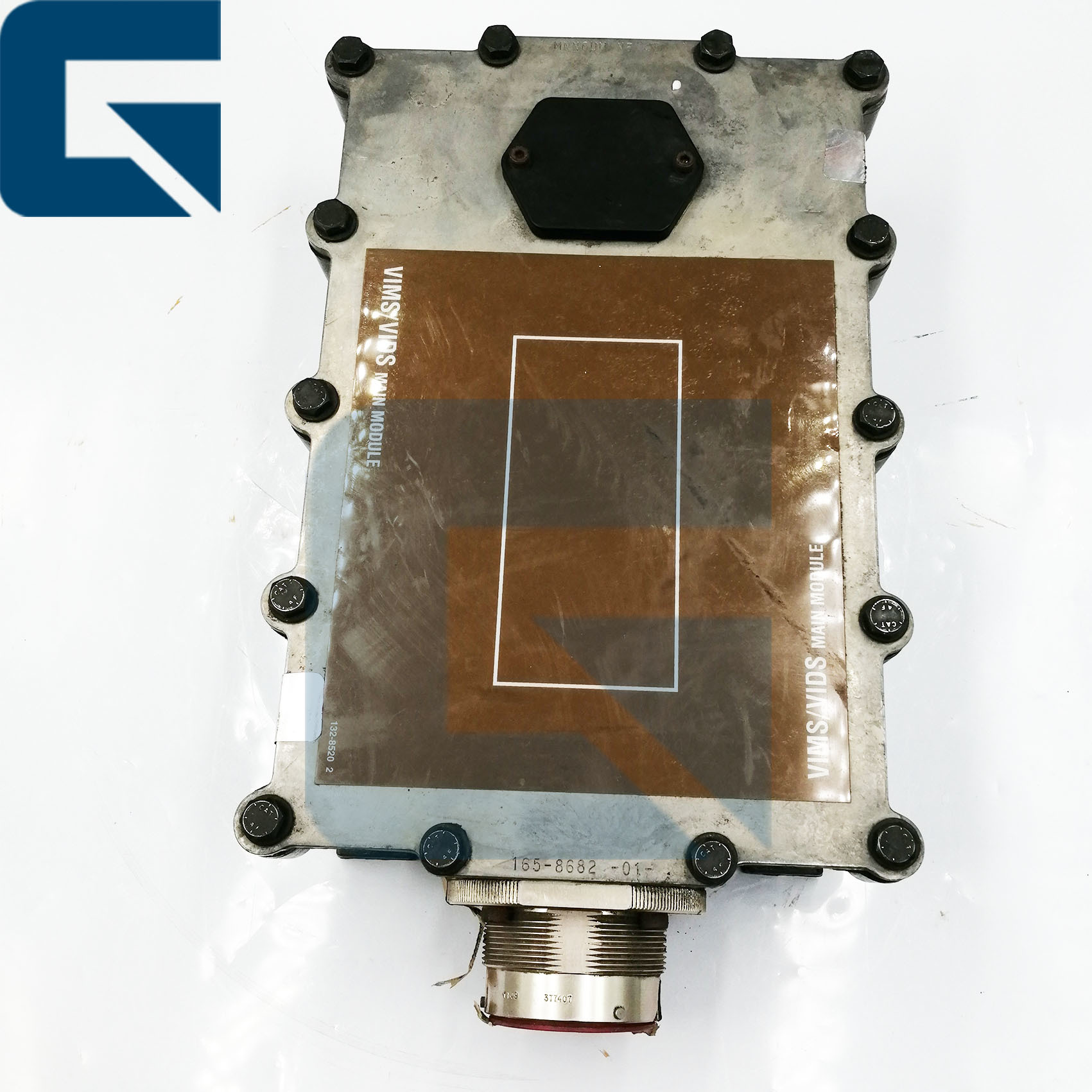

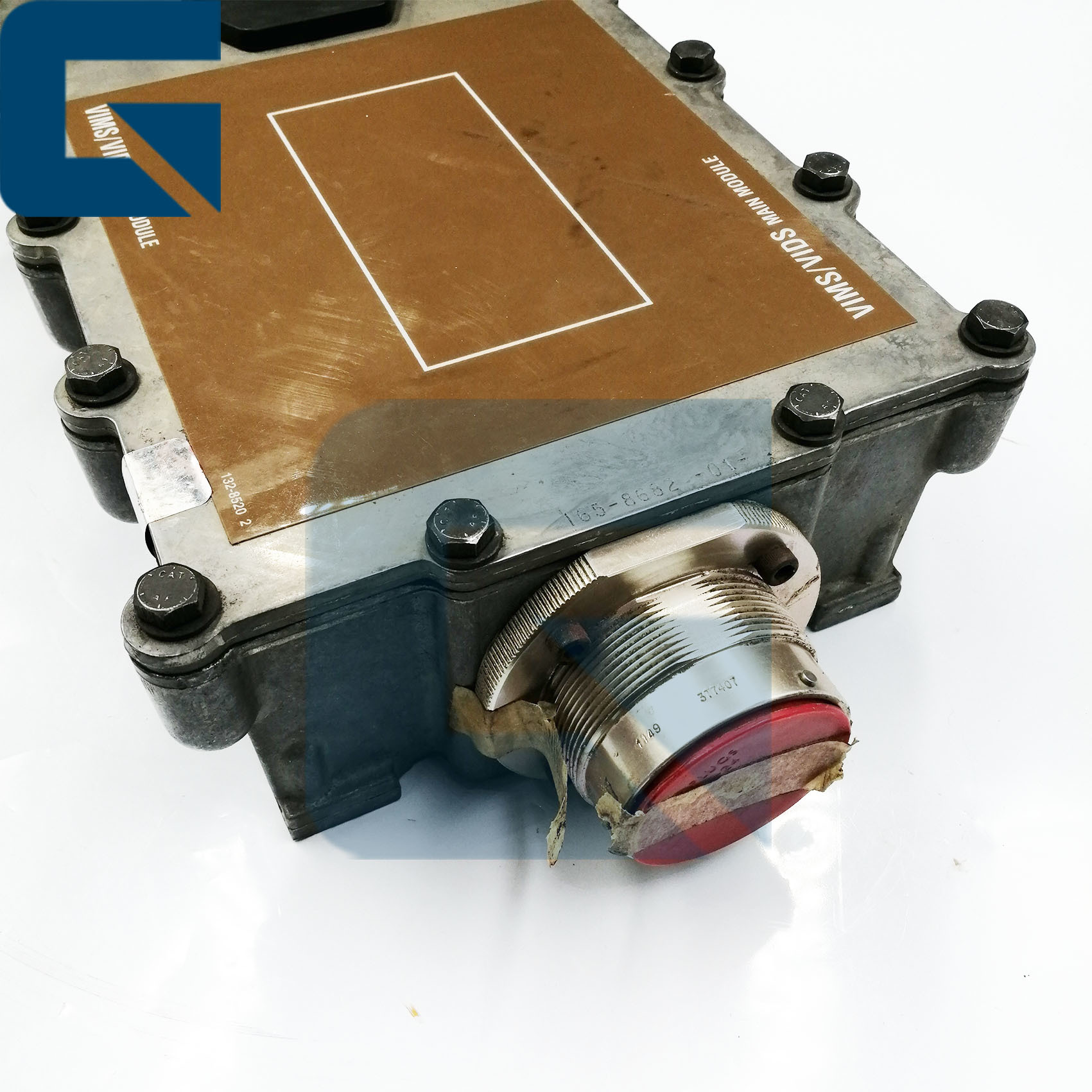

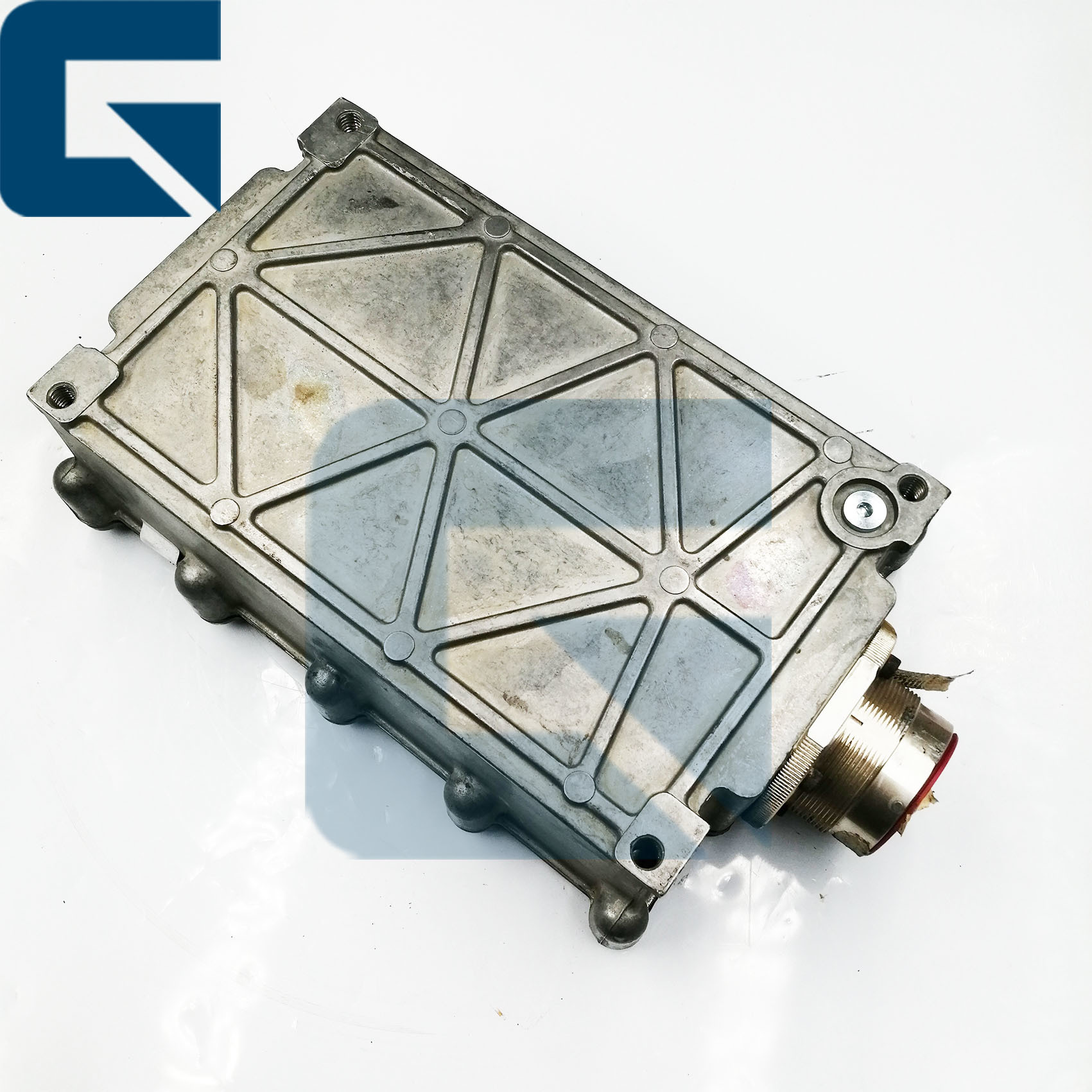

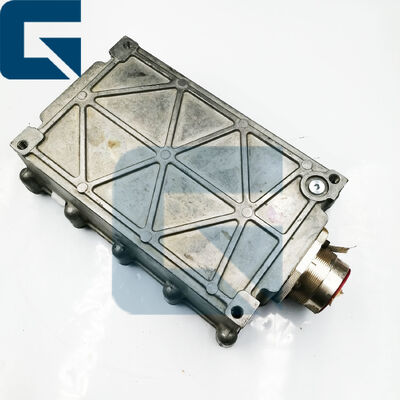

165-8682 1658682 Controller ECU for 994 Wheel Loader

The 3165-8682 1658682 Controller ECU is specifically designed for the 320E Excavator. This high-quality component ensures optimal performance and reliability for your heavy equipment.

• Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
• Programming & Testing: 30-60 minutes.
• Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.

• The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
• Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
• Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
• Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.

Our payment methods include T/T, L/C, PayPal, etc.

Rich stock available.

When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.

1. Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
2. Inspect: Check the ECU for physical damage or loose connections.
3. Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
4. Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
5. Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
6. Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
7. Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
8. Document: Keep a record of all tests, codes, and results for future reference.
