Name: 509-0267 5090267 Control Panel Display for C7.1 Excavator
Brand: GUANGZHOU JIAJUE TRADING CO.,LTD
SKU: C7.1
Price: 50,000,012.00 USD
Availability: InStock

Detailinformationen

Teilenummer:

509-0267

Mindestbestellmenge:

Hervorheben:

C7.1 excavator control panel

5090267 excavator display

excavator accessories with warranty

Produkt-Beschreibung

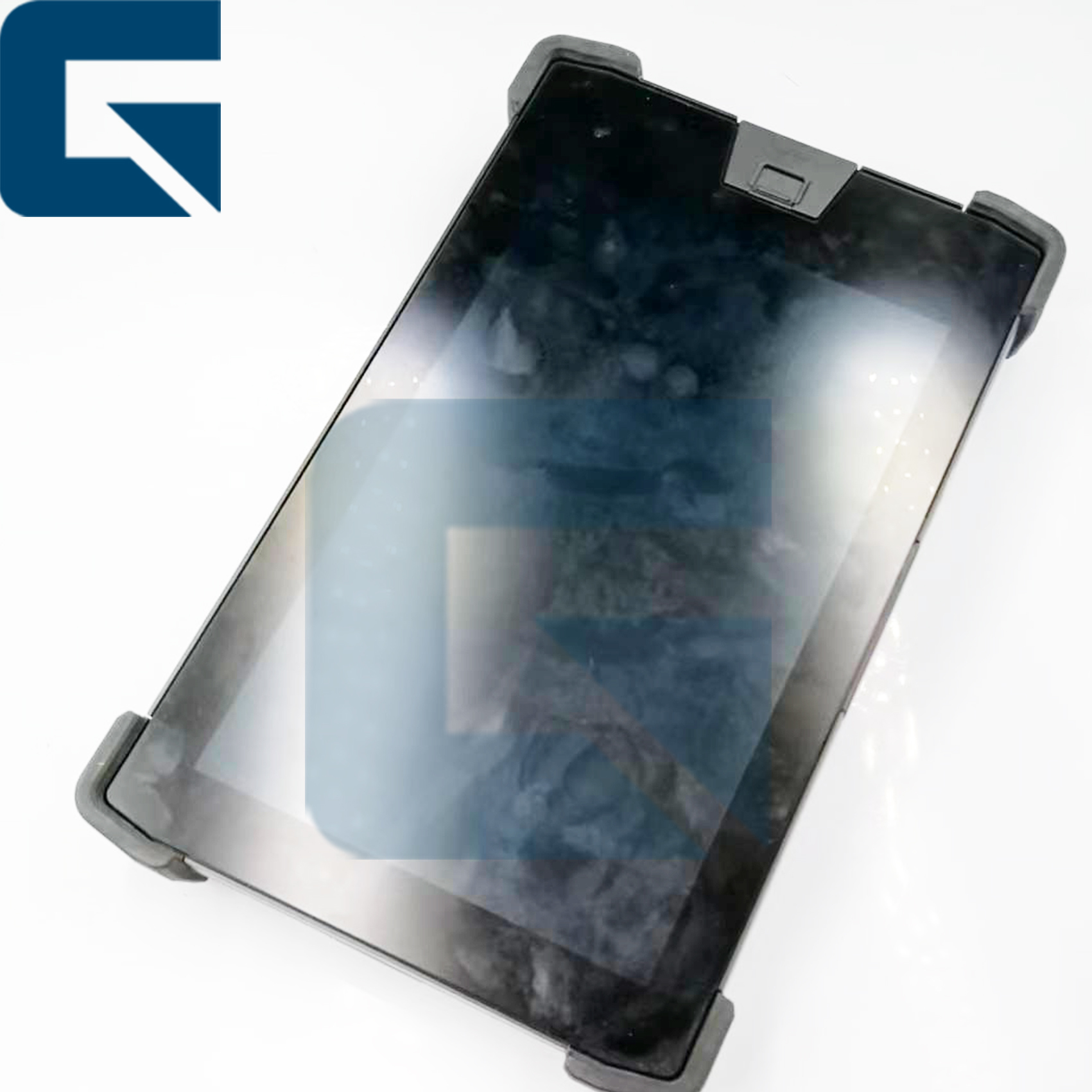

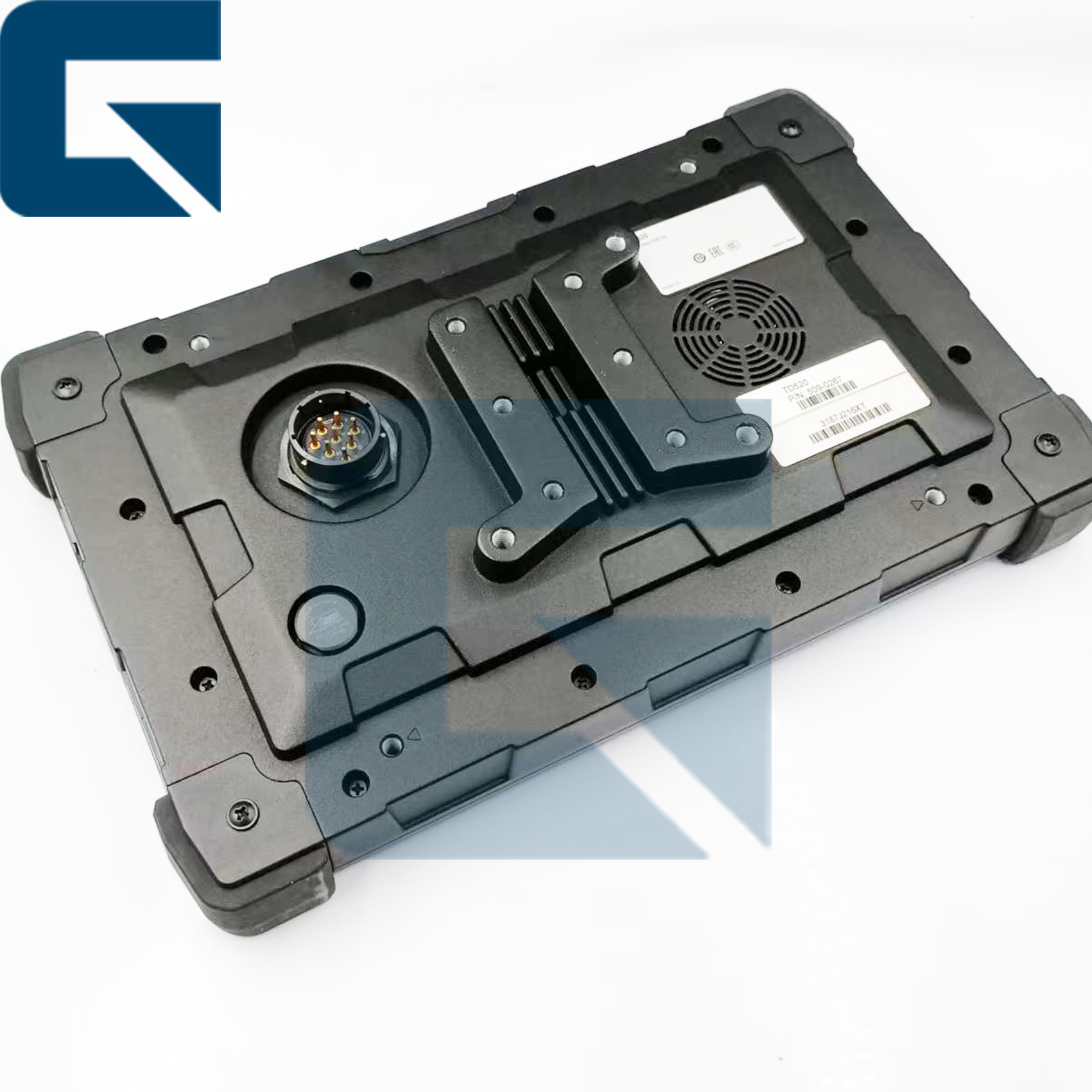

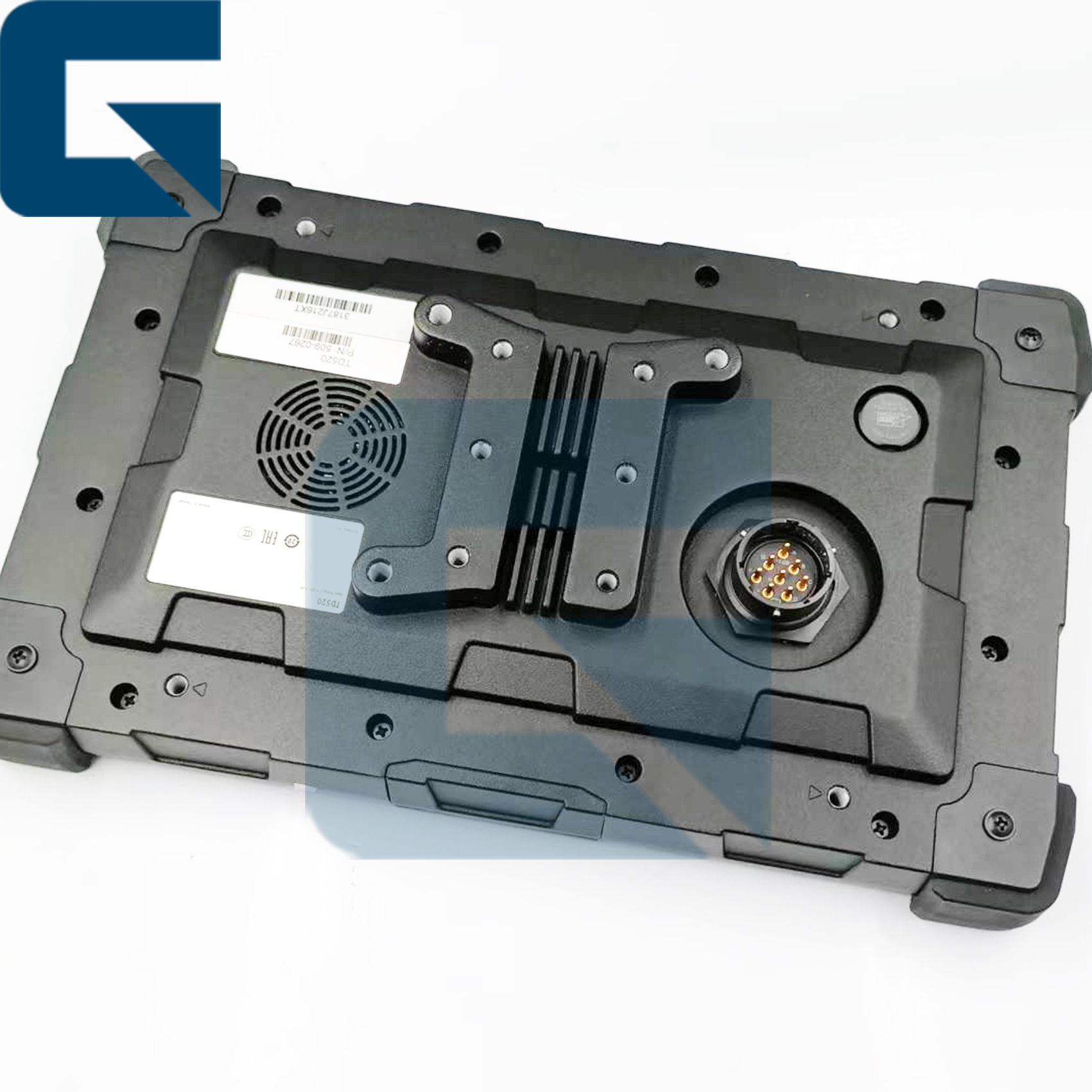

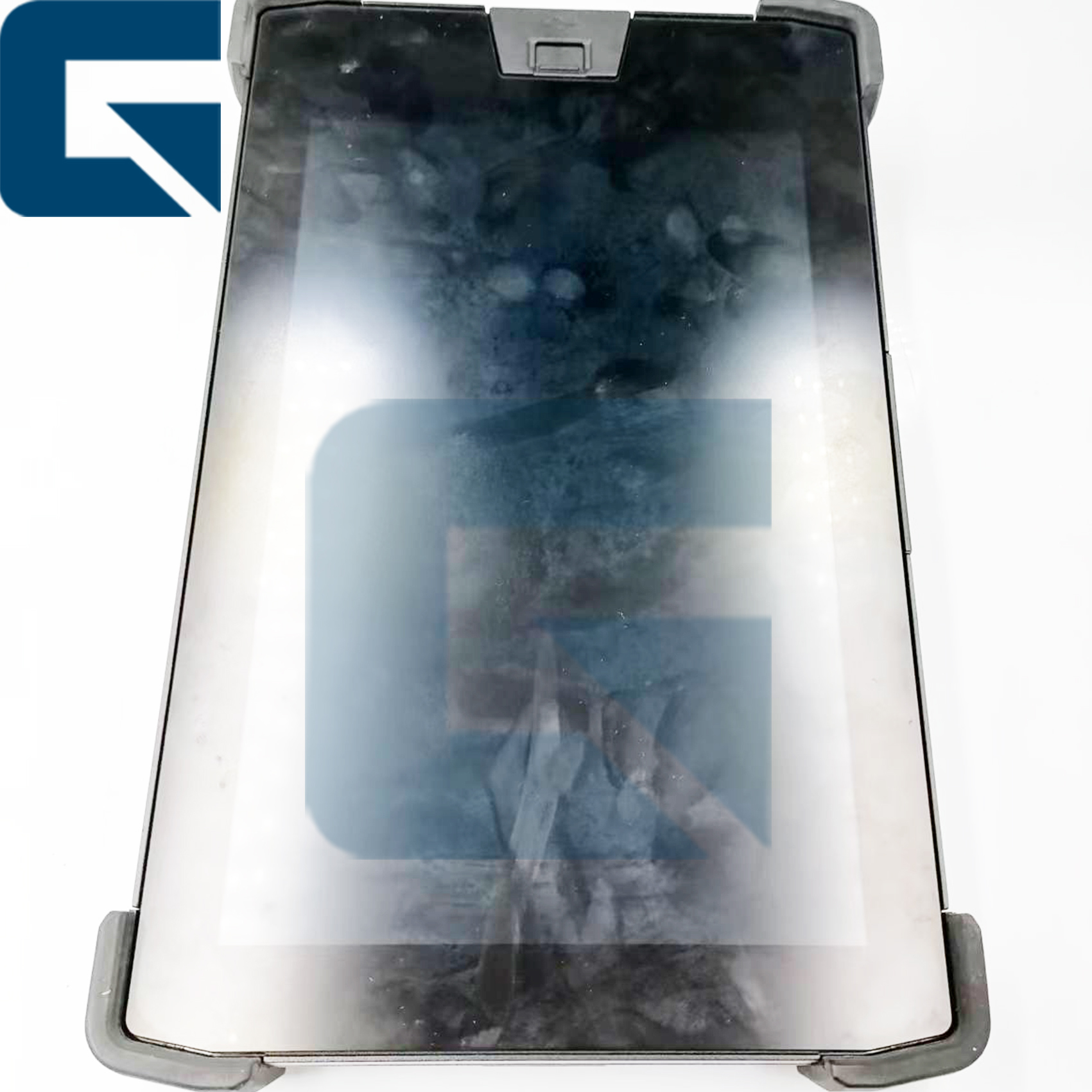

509-0267 Control Panel Display for C7.1 Excavator

High-quality replacement monitor display panel designed specifically for SE220-8 excavator models, delivering reliable performance and clear visual functionality.

Product Specifications

Product Name	Monitor
Part Number	509-0267
Brand Name	JIAJUE
Model	C7.1
Availability	Rich Stock
Approximate Weight	2KG
Size (per unit)	30cm x 30cm x 10cm

Shipping & Payment

Delivery Time	Usually 1-3 days after payment
Shipment Dispatch	Within 24-48 hours
Delivery Methods	DHL, FedEx, TNT, UPS
Payment Methods	TT, Western Union, Credit Card, PayPal

Product Images

Related Products

Frequently Asked Questions

Installation Steps for 60220-96-00008 Monitor

Disconnect power → Anti-static protection → Cleaning and inspection → Wiring harness connection → Secure installation → System configuration and debugging → Routine maintenance and cleaning, avoid moisture.

Monitor Compatibility

The "compatibility" of excavator monitors refers to two dimensions: hardware universality and software platformization.

Troubleshooting: Black Screen or No Display

A: Monitor not powered on or power cord loose → Check if the monitor power cord is properly connected and ensure the power is on.
B: Monitor hardware malfunction → Consider replacing or repairing the monitor.

Technical Support

Yes, customers provide pictures and videos, and our technicians will determine the problem and then help you solve it.

Why Choose Guangzhou Jiajue Company?

Because our monitors are tested before shipment to ensure they can work properly after installation.

Step-by-Step Testing Guide

Note: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Power On: Ensure the excavator's main power is turned on.
Visual Inspection: Check the monitor for physical damage, such as cracks or non-functional buttons.
Check Display: Verify that the monitor screen lights up and displays information clearly without distortion or flickering.
Test Functionality:
- Check if all buttons and touchscreen functions (if applicable) respond correctly to inputs
- Navigate through different menus and settings to ensure the monitor controls all essential functions of the excavator
Connection Test:
- If the monitor interfaces with other systems (e.g., cameras, sensors), ensure these connections are secure and operational
- Test any integrated features like audio output or external video inputs if present
Brightness and Contrast: Adjust brightness and contrast settings to ensure they function properly and provide adequate visibility in different lighting conditions.
Document Findings: Record any issues observed during testing and note if the monitor requires further attention or replacement.
Consultation: If the monitor displays persistent issues or malfunctions, consult with a qualified technician or the manufacturer's support team for guidance on repairs or replacement.

By following these steps, you can effectively test the monitor of an excavator to ensure it is functioning correctly and contributing to safe and efficient operations.

Company Profile

Exhibition

Factory Environment

Packaging & Shipping

Größe und Tag:

Herkunftsort:	China
Markenname:	JIAJUE
Modellnummer:	C7.1

Min Bestellmenge:	1
Preis:	Please send mail or WhatsApp
Verpackung Informationen:	509-0267 5090267 Bedienfeld-Display für C7.1-Bagger ist nach Kundenwunsch in Standard-Exportverpacku
Lieferzeit:	1 Werktag
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union,
Versorgungsmaterial-Fähigkeit:	1000 Stück/Monat
