Name: 7W-7032 72W703 Fuel Injector for 3406B Engine
Brand: GUANGZHOU JIAJUE TRADING CO.,LTD
SKU: 3406B
Price: 50,000,012.00 USD
Availability: InStock

Detailinformationen

Produktname:	7W-7032 7W7032 Einspritzventil für 3406B-Motor	Material:	Stahl
Herkunftsort:	Guangdong, China	Mindestbestellmenge:	1
OEM:	Unterstützung
Hervorheben:	3406B engine fuel injector , 72W703 diesel fuel injector , 7W-7032 fuel injector with warranty

Produkt-Beschreibung

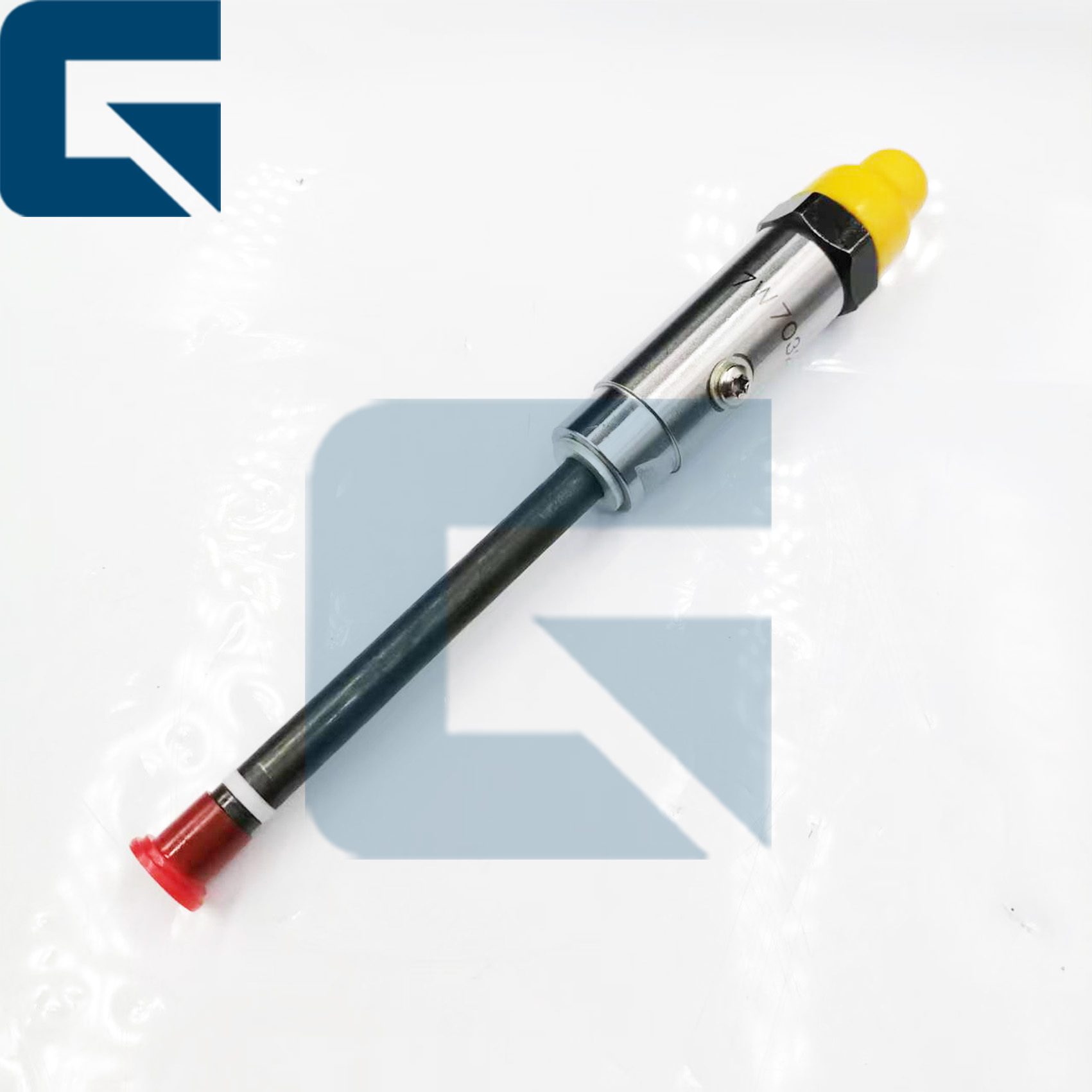

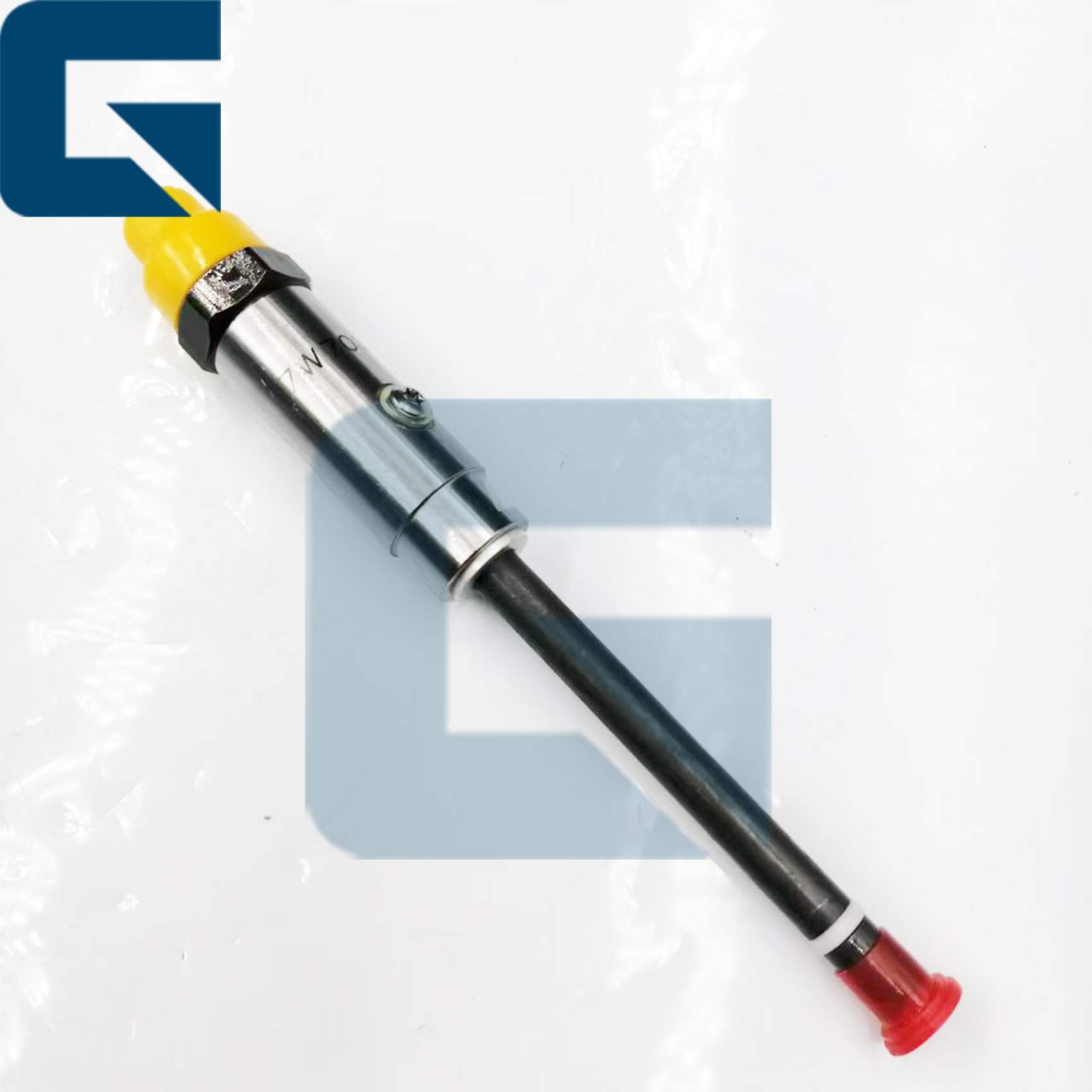

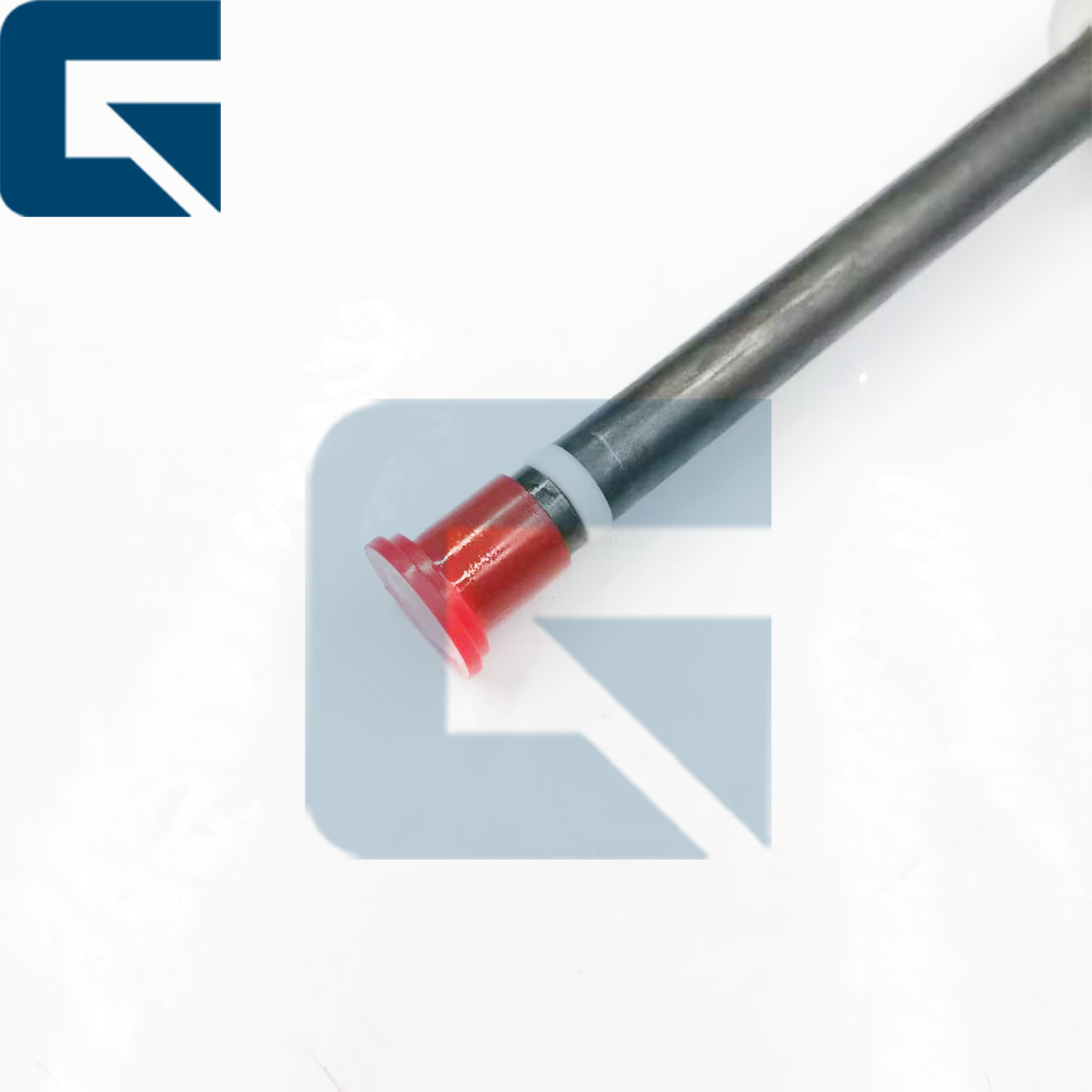

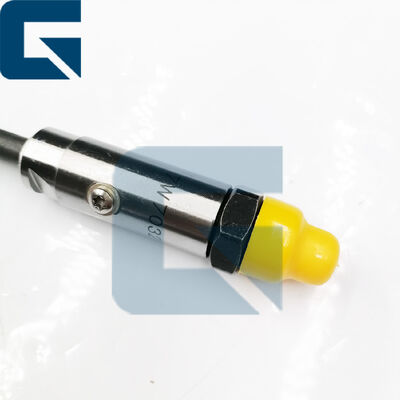

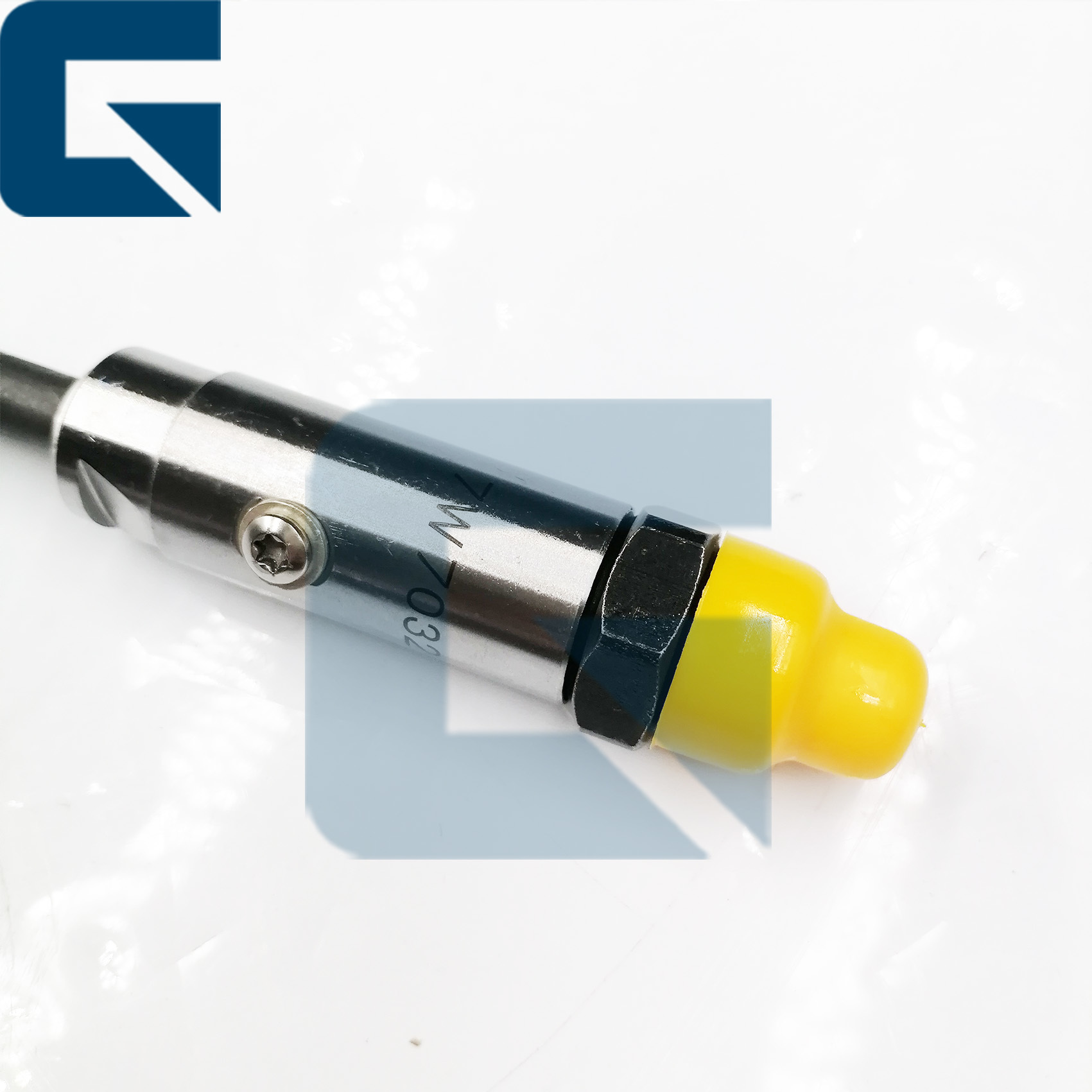

7W-7032 72W703 Fuel Injector for 3406B Engine

Product Specifications

Product Name	Fuel Injector
Part Number	7W-7032/72W703
Equipment Fit	3406B
Type	Engine Parts
Place of Original	GUANGZHOU
Brand Name	JIAJUE
MOQ	1 Piece
Condition	New
Availability	Rich Stock
Approximate Weight	1KG
Size (per piece)	20cm x 5cm x 8cm
Warranty	3 Months
Shipment	Dispatched within 3 days

Product Images

Frequently Asked Questions

Q1: How do I install my fuel injector after purchasing it?

Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.

Q2: What precautions should I take before installing my fuel injector?

The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; and ensure the O-ring is installed correctly.

Q3: Why is my engine still unusable after replacing the fuel injector?

This is commonly due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.

Q4: Is my device compatible with this part number of fuel injectors?

If unsure about compatibility, please provide your Engine Serial Number (ESN) for free verification.

Q5: How to determine if your fuel injectors need replacing?

Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations to locate faulty cylinders.
Fuel Rail Pressure Test: Check for internal leaks preventing system from building critical starting pressure.
Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly.
Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion.

Q6: How long will it take to receive my package after I make the payment?

Delivery time depends on your country, region, and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.

Step-by-Step Installation Guide

Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

1. Preparation: Clean the injector bores thoroughly. Ensure there is no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for any signs of pitting or erosion.

2. Lubrication: Apply clean engine oil to the three O-rings and the backup rings.

Never use grease. Only use clean engine oil to ensure the seals slide in without tearing.

3. Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.

4. Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft).

Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.

5. Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM to ensure precise fuel delivery synchronization.

Troubleshooting Guide

Issue	Root Cause	Solution
Black Smoke	Poor spray atomization or stuck needle valve causing dripping	Inspect the air filter
Hard Start	Internal leakage in injector leading to insufficient starting oil pressure	Inspect injector O-rings and internal seals
Engine Misfire	Faulty solenoid valve coil or worn internal valve components	Inspect wiring harness connections and replace damaged injectors

Größe und Tag:

Herkunftsort:	China
Markenname:	Jiajue
Modellnummer:	3406B

Min Bestellmenge:	1 STÜCK
Preis:	Please send mail or WhatsApp to us
Verpackung Informationen:	Der Kraftstoffeinspritzer 7W-7032 72W703 für den 3406B-Motor ist nach Kundenwunsch in einer Standard
Lieferzeit:	1–5 Werktage
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union,
Versorgungsmaterial-Fähigkeit:	100 Stück/Monat
